Navigation

Tree Control

The left pane of the main window displays a tree control (the pgAdmin tree control) that provides access to the objects that reside on a server.

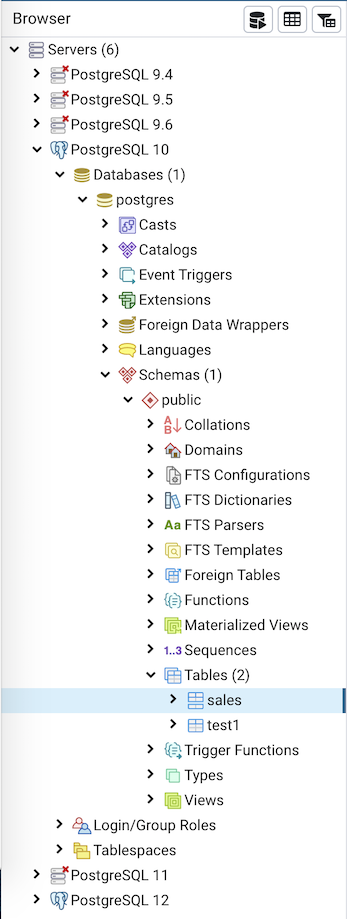

Browser tree panel

You can expand nodes in the tree control to view the database objects that reside on a selected server. The tree control expands to display a hierarchical view:

  • Use the plus sign (+) to the left of a node to expand a segment of the tree control.

  • Click the minus sign (-) to the left of a node to close that node.

You can also drag and drop certain objects to the Query Tool which can save time in typing long object names. Text containing the object name will be fully qualified with schema. Double quotes will be added if required. For functions and procedures, the function name along with parameter names will be pasted in the Query Tool.

Access context-sensitive menus by right-clicking on a node of the tree control to perform common tasks. Menus display options that include one or more of the following selections (options appear in alphabetical order):

Option

Action

Add named restore point

Click to create and enter the name of a restore point.

Backup…

Click to open the Backup… dialog to backup database objects.

Backup Globals…

Click to open the Backup Globals… dialog to backup cluster objects.

Backup Server…

Click to open the Backup Server… dialog to backup a server.

Connect Server…

Click to open the Connect to Server dialog to establish a connection with a server.

Create

Click to access a context menu that provides context-sensitive selections. Your selection opens a Create dialog for creating a new object.

CREATE Script

Click to open the Query tool to edit or view the CREATE script.

Debugging

Click through to open the Debug tool or to select Set breakpoint to stop or pause a script execution.

Delete/Drop

Click to delete the currently selected object from the server.

Disconnect Database…

Click to terminate a database connection.

Disconnect Server…

Click to refresh the currently selected object.

Drop Cascade

Click to delete the currently selected object and all dependent objects from the server.

Debugging

Click to access the Debugger tool.

Grant Wizard

Click to access the Grant Wizard tool.

Maintenance…

Click to open the Maintenance… dialog to VACUUM, ANALYZE, REINDEX, or CLUSTER.

Properties…

Click to review or modify the currently selected object’s properties.

Refresh…

Click to refresh the currently selected object.

Reload Configuration…

Click to update configuration files without restarting the server.

Restore…

Click to access the Restore dialog to restore database files from a backup.

View Data

Use the View Data option to access the data stored in a selected table with the Data Output tab of the Query Tool.

The context-sensitive menus associated with Tables and nested Table nodes provides additional display options (options appear in alphabetical order):

Option

Action

Import/Export…

Click open the Import/Export… dialog to import data to or export data from the selected table.

Reset Statistics

Click to reset statistics for the selected table.

Scripts

Click to open the Query tool to edit or view the selected script from the flyout menu.

Truncate

Click to remove all rows from a table.

Truncate Cascade

Click to remove all rows from a table and its child tables.

View First 100 Rows

Click to access a data grid that displays the first 100 rows of the selected table.

View Last 100 Rows

Click to access a data grid that displays the last 100 rows of the selected table.

View All Rows

Click to access a a data grid that displays all rows of the selected table.

View Filtered Rows…

Click to access the Data Filter popup to apply a filter to a set of data.
